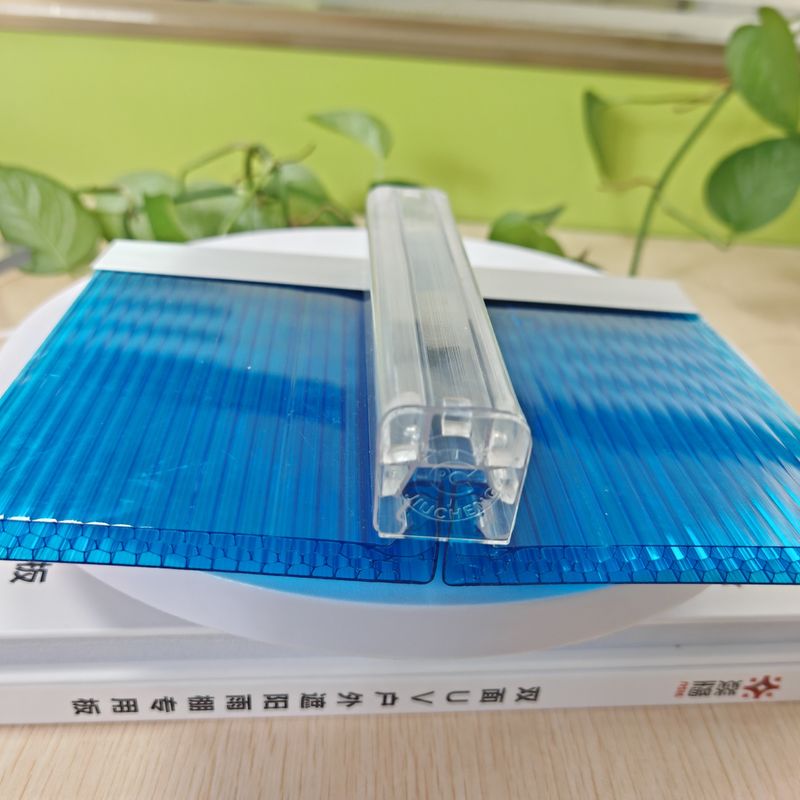

Honeycomb U-Lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing

Name: Honeycomb U-Lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing
Brand: Foshan Huaxia Nature Building Materials Co., Ltd.
SKU: TOPPC03
Price: 9.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TOPPC

Certification: ROSH CE

Model Number: TOPPC03

Payment & Shipping Terms

Minimum Order Quantity: 100 square meters

Price: 3.3USD-16.8USD per sqaure meters

Packaging Details: Plastic paper

Delivery Time: 15 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 1000000 meters per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    polycarbonate honeycomb roofing sheet, lightweight u-lock polycarbonate sheet, impact-resistant polycarbonate roofing panel


Flexibility:	Can Be Cold Bent	Warranty:	More Than 10 Years
Legth:	2.mm,3.05m,5.8m,11.8m	Easy To Cut:	Yes
Application:	Construction, Greenhouses, Signage, Etc.	Materials:	100% Virgin
Temperature Resistance:	-40°C To 120°C	High Temperature Resistance:	Up To 120°C
Chemical Resistance:	Resistant To Most Chemicals	Surface Treatment:	UV Coating, Anti-Scratch, Anti-Fog
Light Transmission:	Up To 90%	Easy To Install:	Yes
Width:	600mm 1050mm	Color:	Clear Opal Red Green Bronze

Flexibility:	Can Be Cold Bent
Warranty:	More Than 10 Years
Legth:	2.mm,3.05m,5.8m,11.8m
Easy To Cut:	Yes
Application:	Construction, Greenhouses, Signage, Etc.
Materials:	100% Virgin
Temperature Resistance:	-40°C To 120°C
High Temperature Resistance:	Up To 120°C
Chemical Resistance:	Resistant To Most Chemicals
Surface Treatment:	UV Coating, Anti-Scratch, Anti-Fog
Light Transmission:	Up To 90%
Easy To Install:	Yes
Width:	600mm 1050mm
Color:	Clear Opal Red Green Bronze

Description

Honeycomb U-Lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing

Factory Price Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing for Canopies

Product Specifications

Attribute	Value
Flexibility	Can be cold bent
Warranty	More than 10 years
Length	2.mm, 3.05m, 5.8m, 11.8m
Easy To Cut	Yes
Application	Construction, Greenhouses, Signage, etc.
Materials	100% Virgin
Temperature Resistance	-40°C to 120°C
High Temperature Resistance	Up to 120°C
Chemical Resistance	Resistant to most chemicals
Surface Treatment	UV Coating, Anti-Scratch, Anti-Fog
Light Transmission	Up to 90%
Easy To Install	Yes
Width	600mm, 1050mm
Color	Clear, Opal, Red, Green, Bronze

Product Description

Honeycomb U-lock Polycarbonate Sheet is a high-strength, energy-efficient roofing and cladding panel designed with an X-shaped internal structure and a U-locking edge system. It offers enhanced mechanical stability, thermal insulation, and fast, seamless installation, making it ideal for both commercial and residential use.

Key Features

Honeycomb Internal Structure: Crossed ribs form an X-pattern inside the sheet, creating multiple air chambers that improve compression resistance, wind load capacity, and thermal insulation.
Integrated U-lock Edge Design: Allows panels to snap together tightly without additional connectors, ensuring leak-proof, clean-lined, and secure installation.
UV Coating for Durability: One or both sides UV-protected to prevent yellowing, cracking, and aging from sunlight.
Lightweight & Impact Resistant: Weighs less than glass or metal roofing, yet provides up to 200 times more impact resistance than glass.
Even Light Distribution: X-profile disperses light effectively to reduce glare and hotspots, ideal for covered walkways, skylights, and greenhouses.

Typical Specifications

Item	Specification
Thickness	16mm / 18mm / 20mm
Effective Width	600mm
Total Width	630mm
Length	Custom (standard: 6m / 11.8m)
Internal Structure	Honeycomb
Colors	Clear, Blue, Bronze, Opal, Green
UV Protection	One or both sides
Light Transmission (Clear)	50-65%
Thermal Conductivity (K)	≤ 1.7 W/m²*K
Fire Rating	B1 (Flame Retardant)

Advantages

Stronger than standard multi-wall sheets due to X-shaped support
Efficient heat insulation and sound reduction
Quick, tool-free assembly using U-lock design
Excellent resistance to weather, hail, and impact
Visually clean with concealed joints

Common Applications

Skylights and daylight roofing
Greenhouses and garden buildings
Carports and canopies
Covered walkways and patio enclosures
Commercial building facades
