Six-Layer U-Lock Polycarbonate Sheet for Superior Thermal Insulation

Brand Name:	TOPPC
Model Number:	TOPPC02
MOQ:	100 square meters
Price:	2.3USD-18.8USD per sqaure meters
Packaging Details:	Two side with PE film
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROSH CE

Uv Resistance:

UV Protected

Legth:

5.8m

Width:

0.6m 1.05m

Easy To Cut:

Yes

Application:

Indoor/Outdoor

Durable:

Yes

Chemical Resistance:

Chemical Resistant

Thickness:

8mm 10mm 12mm 14mm 16mm 18mm 20mm 25mm

Durability:

Durable

Color:

Clear,Blue,Green,Opal,Bronze

Supply Ability:

1000000 meters per Month

Highlight:

Six-Layer U-Lock Polycarbonate Sheet

Thermal Insulation Polycarbonate Sheet

U-Lock Polycarbonate Sheet

Product Description

Six-Layer U-Lock Polycarbonate Sheet for Superior Thermal Insulation

Attribute	Value
UV Resistance	UV protected
Length	5.8m
Width	0.6m / 1.05m
Easy To Cut	Yes
Application	Indoor/Outdoor
Durable	Yes
Chemical Resistance	Chemical Resistant
Thickness	8mm / 10mm / 12mm / 14mm / 16mm / 18mm / 20mm / 25mm
Durability	Durable
Color	Clear, Blue, Green, Opal, Bronze

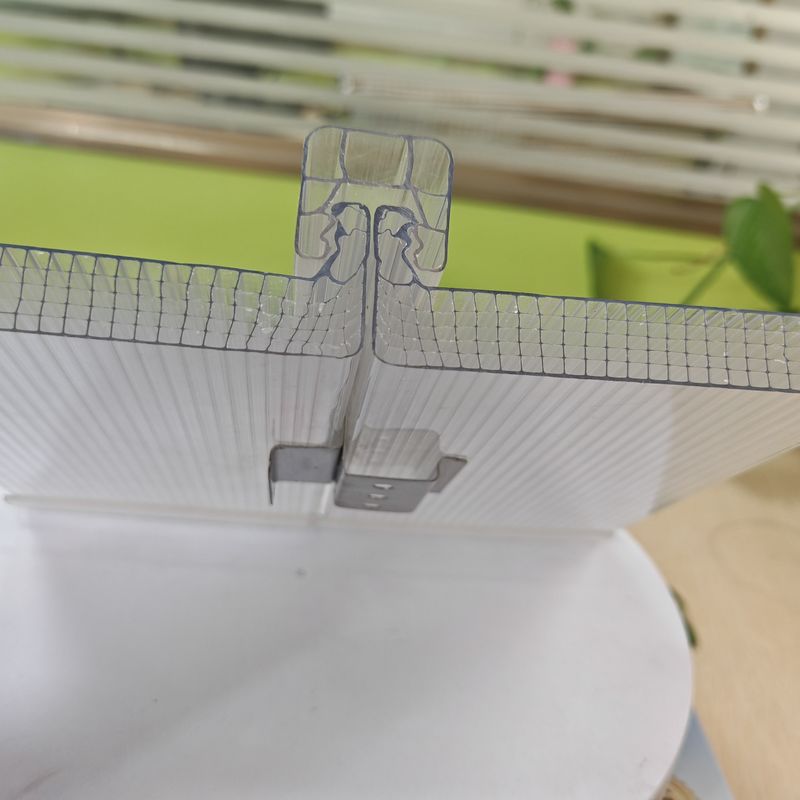

Six-layer U-lock Polycarbonate sheet is an advanced multi-wall sheet designed for superior insulation, durability, and seamless installation. With six internal layers and a proprietary U-lock edge design, it offers exceptional thermal performance and structural strength, making it ideal for high-end architectural and greenhouse applications.

Key Features of Six-Layer U-lock Polycarbonate Sheet

Innovative Six-Wall Structure - Composed of six interconnected walls forming five air chambers, significantly enhancing thermal insulation and load-bearing capacity.
U-lock Connection System - Built-in U-lock edges allow panels to interlock tightly, ensuring a leak-proof and secure installation without additional connectors or profiles.
Excellent Thermal Insulation - The multi-chambered design traps air between layers, reducing heat transfer and improving energy efficiency.
High Impact Resistance - Polycarbonate is nearly unbreakable (up to 200 times stronger than glass), resistant to hail, wind, and accidental impacts.
UV Protection - Co-extruded UV coating on one or both sides resists yellowing and degradation from sun exposure.
Lightweight & Easy to Install - Despite its layered strength, the sheet is light and can be cut or installed easily with minimal tools.

Typical Specifications

Item	Specification
Thickness	8mm / 10mm / 12mm / 14mm / 16mm / 18mm / 20mm / 25mm
Width	600mm / 1050mm
Length	Custom (standard: 6m / 11.8m)
Color Options	Clear, Opal, Blue, Bronze, Green
UV Protection	One side UV-coated
Fire Rating	B1 (Flame Retardant)
Light Transmission (Clear)	40-55%
Thermal Conductivity (K)	≤ 1.8 W/m²*K

Advantages

Superior insulation for energy savings
High strength for larger spans or snow load areas
Seamless interlocking reduces labor and accessories
Excellent weather, impact, and aging resistance
Aesthetic appearance with hidden joints

Typical Applications

Greenhouses for cold or hot climates
Skylights and daylight roofs
Walkway and corridor canopies
High-performance curtain wall glazing
Modern architectural roof systems
