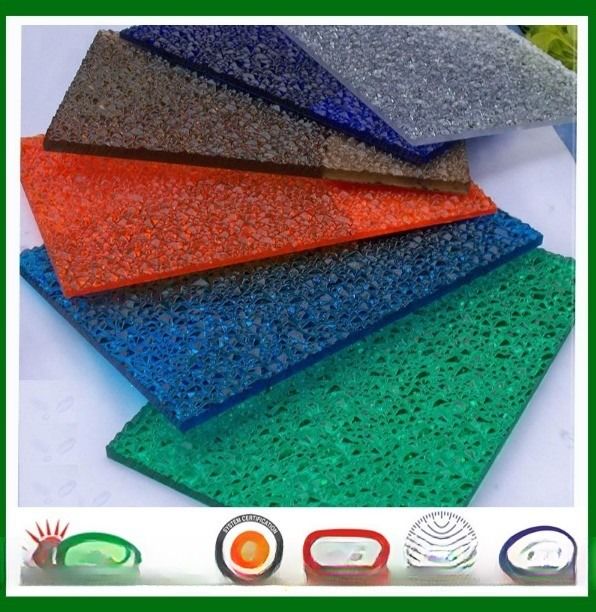

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets

Brand Name:	China Nature
Model Number:	3103
MOQ:	100 square meters
Price:	$2.00 - $4.00/square meters
Packaging Details:	PE protective film on the smooth side
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE,ISO

Material:

Thickness:

2.7,3.7,4.7mm, 2.7mm,3.7mm,4.7mm

Size:

2.05*3m, 2.05*3m

Color:

Green,clear,bronze,yellow

Raw Material:

Polycarbonate Resin

Brand:

Macrolux Compact Sheet

Application:

Building

Surface:

Hard Surface

Port:

Shunde,China

Supply Ability:

1000000 Square Meter/Square Meters per Month

Highlight:

PC Embossed Sun Sheets

Compact PC Embossed Sun Sheets

Green Polycarbonate Embossed Sun Sheets

Product Description

Polycarbonate embossed sheet for roofing

Product Description

Property	Description
Material	Polycarbonate
Surface Finish	Embossed
Thickness	Typically ranges from 1.2mm to 6mm, but other sizes may be available
Weight	Lightweight compared to glass and other plastics
Light Transmission	High transparency, with light transmission rates usually around 80-90%
Impact Resistance	High impact resistance, about 200 times stronger than glass and 10 times stronger than acrylic
UV Resistance	UV-coated to protect against yellowing and degradation
Temperature Range	Can withstand temperatures from -40°C to 120°C
Flexibility	High flexibility, making it suitable for curved applications
Applications	Skylights, roofing, greenhouses, partitions, signage, and various industrial applications
Chemical Resistance	Good resistance to many chemicals, including diluted acids and alcohols
Flammability	Self-extinguishing, with some variants meeting fire safety standards
Sound Insulation	Provides good sound insulation properties
Weather Resistance	Excellent weather resistance, suitable for outdoor use
Colors	Available in clear, opal, bronze, and other colors
Maintenance	Easy to clean and maintain
Warranty	Often comes with a warranty period, typically around 10 years

1. Specifications:
1) Thickness:hollow sheet-4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm
solid sheet-from 1.8mm-12mm, embossed sheet from 2.3mm-12mm
2) regular Width: 1,220mm, 2,100mm; length: 6,000mm 12,000mm
3) Colors: clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request)

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 0

2. Features:
1) High light transmission: up to 88% that of same thickness of general glass.
2) Excellent impact resistance: 80 times that of glass.
3) Weather and UV resistant-properties retained for years.: Temperature resistance range is 40°C ~ +120°C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4) Light weight: only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7) An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat capabilities.

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 2

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 5

3. Applications:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 6

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 7

Packaging & Shipping

Green Building Solution Macrolux Polycarbonate Compact PC Embossed Sun Sheets 8
